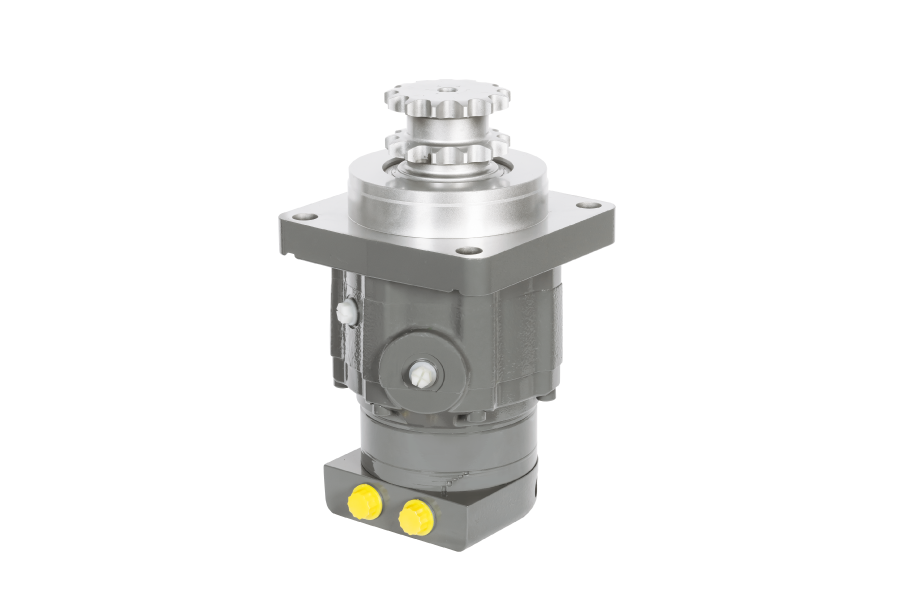

HCLB Series Orbital Hydraulic Motor

HCLB series orbital hydraulic motor is a cycloidal hydraulic motor with brake, which adopts a special end face compensation structure, which can achieve high volumetric efficiency and high starting efficiency under high pressure conditions, and is suitable for the walking drive of miniature skid steer loader. Built-in flushing valve is optional.

Displacement: 195/245/375 cc/rev
Max.differential pressure: 207 bar

Category: Orbital Motors

Description

Description

Series advantages

•Specially designed rotor with integrated internal flushing and self-lubrication function to improve the life of the rotating shaft

•Double tapered roller bearing design to withstand high radial loads

•High pressure face compensation disc to improve volumetric efficiency

•Direct sprocket output, easy to install and use

•Compact back cover design with integrated flushing valve option

Technical specifications

Type		195	245	375
Displacement(cm³/rev.)		198	243.6	363
Max.speed(rpm)	Continuous	337	302	203
Max.speed(rpm)	Intermittent	409	362	241
Max.flow(L/min)	Continuous	68	76	76
Max.flow(L/min)	Intermittent	83	91	91
Max.torque(Nm)	Continuous	559	684	1017
Max.torque(Nm)	Intermittent	637	795	1175
Max.pressure drop(bar)	Continuous	207	207	207
	Intermittent	241	241	241
	Peak	276	276	276
Max.no-load starting pressure (bar)		8	10	10
Min.starting torque (Nm)	Max.continuous	391	484	712
Min.starting torque (Nm)	Max.Intermittent	446	537	823
Weight(kg)		30.1	30.5	31.6
