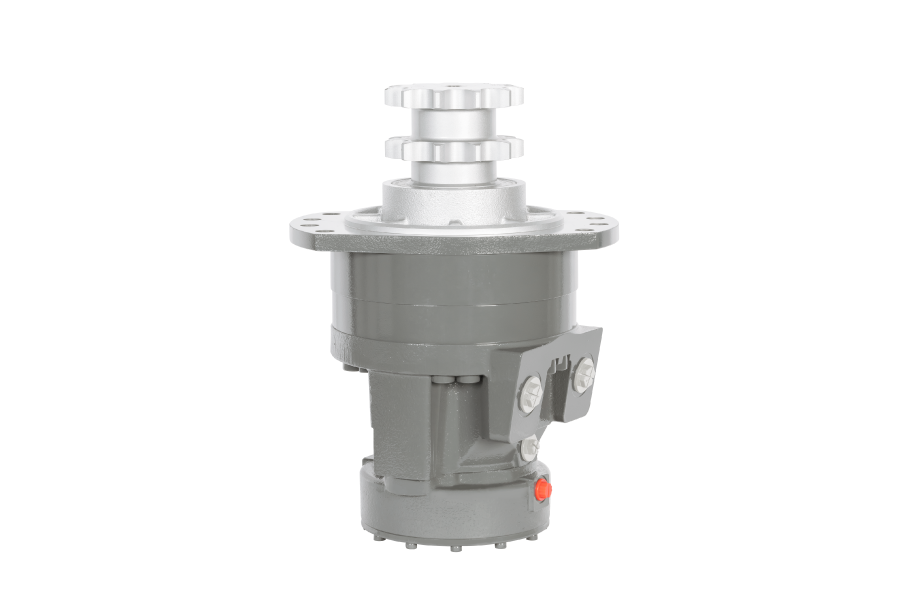

HRP5A Series Radial Piston Hydraulic Motor

The HRP5A series radial piston hydraulic motor, is a kind of low speed high torque hydraulic motor, disc valve structure, with high pressure, good stability at low speed, high volumetric efficiency and mechanical efficiency

Category: Radial Piston Motors

Description

Description

Series				HRP5A
Motor performance
Displacement			cm3/rev.	565
Variable Displacement			cm3/rev.	310
Max.torque			Nm	4047
Min.stable speed			rpm	5
Max.speed	Displacement		rpm	320
	Variable displacement		rpm	385
Pressure	Max.differential pressure		bar	400
Max.power			kW	35
Wight	Two speed	With brake	kg	60
		Without brake	kg	49
Brake
Static braking torque			Nm	2200
Release pressure			bar	11 ～ 15
Maximum pressure at brake port Z			bar	30
Oil volume to operate brake			cm3	23
