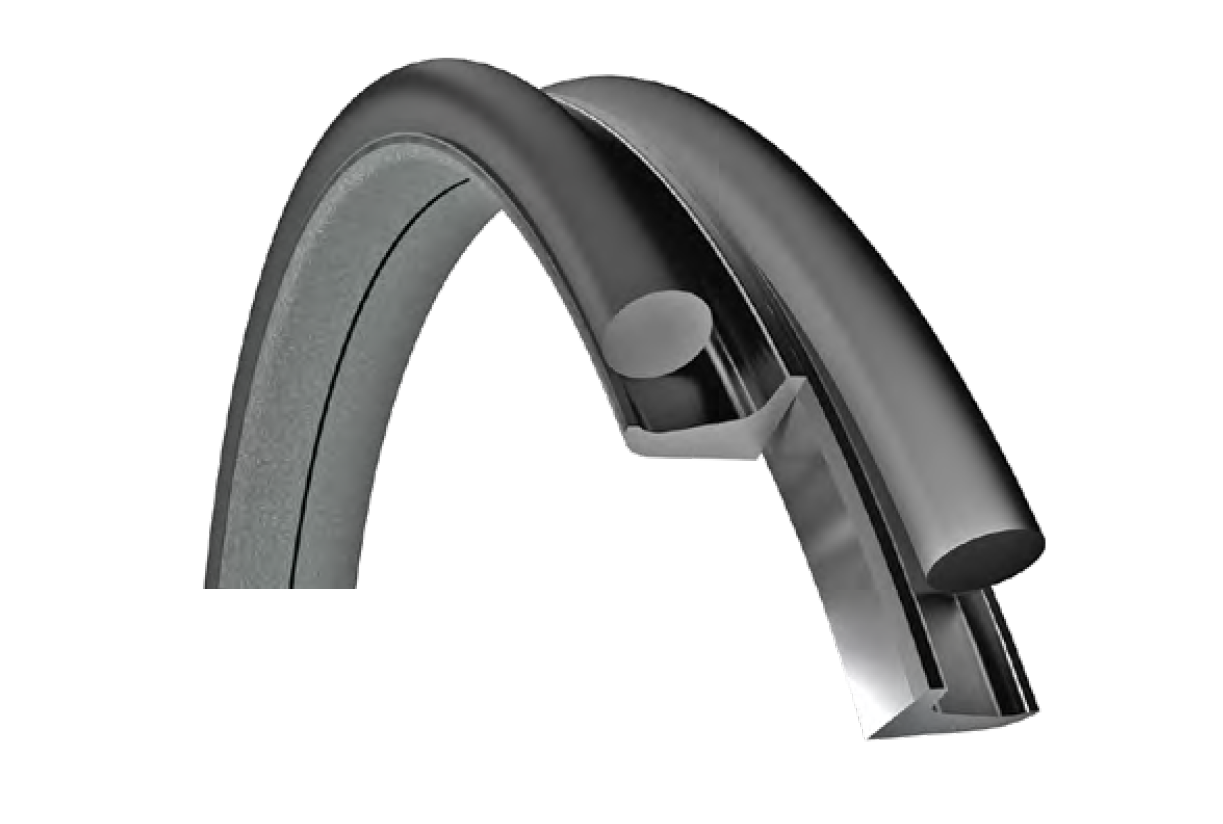

O-Ring Type Mechanical Face Seal Standard Product
The most common mechanical face seals design is the o-ring, with two symmetrically tapered seal rings and two o-rings. O-ring designs have two versions – the 76.90H with a ground profile; and the 76.97H with an as-cast profile. In general, both versions are completely interchangeable.
Related Products
Related products
-
Asymmetric Type Mechanical Face Seal Less Installation Space
There are two different versions: the inverted seal ring design provides a considerable savings potential with regards to the cross section and manufacturing technology. The countering style shows advantages when there is limited installation space.
-
Square Bore Type Mechanical Face Seal Better Mud Packing Behavior
The mechanical face seal type 76.95 consists of two metallic angular seal rings with identical contours. The seal rings are assembled with trapezoid elastomer parts positioned against the housing bore. Type 76.95 provides stiffer spring characteristics than standard o-ring designs.
The HSL seal is an evolution and special form of the square bore seal. It uses a unique and patented design for the elastomeric part of the seal with an integral dirt exclusion lip and heavy-duty spin protection. These features improve protection significantly, leading to reduced leakage, extended service life and resisting compression from mud.
-
Square Bore Type Mechanical Face Seal Better Mud Packing Behavior
The mechanical face seal type 76.95 consists of two metallic angular seal rings with identical contours. The seal rings are assembled with trapezoid elastomer parts positioned against the housing bore. Type 76.95 provides stiffer spring characteristics than standard o-ring designs.
The HSL seal is an evolution and special form of the square bore seal. It uses a unique and patented design for the elastomeric part of the seal with an integral dirt exclusion lip and heavy-duty spin protection. These features improve protection significantly, leading to reduced leakage, extended service life and resisting compression from mud.
