GOETZE Mechanical Face Seals
GOETZE® Mechanical Face Seals, also known as metal face seals, are specifically engineered for rotating applications in extremely arduous environments where they withstand severe wear and prevent the ingress of harsh and abrasive external media.
The high cost of equipment downtime requires the best available seal. GOETZE® Mechanical Face Seals provide superior performance in extreme applications where positive lubricant retention and the ability to keep out damaging and/or abrasive materials are essential.
EQUIPMENTS & SPARE PARTS is an authorized distributor of GOETZE Mechanical Face Seals products in India,
GOETZE® mechanical face seals are found wherever the going gets really tough: wheel hubs and axles, support and guide roller bearings of tracked vehicles, transmissions, and many more axial connections in heavy technical equipment such as construction machinery, conveyors, mining machinery, concrete and cement mixers, tunnel boring, and agricultural equipment. The portfolio of designs and advanced materials cover applications which include some of the largest equipment around the world: with a diameter of up to 1,425 mm.
Applications
- Mining machinery: Dumpers, loaders, excavators and bull dozers of Caterpillar, Komatsu, Hitachi Euclid, BEML , Terex and Volvo
- Dredging machines: Royal IHC Holland , customized solutions as per clients requirement and operations
- Tunnel boring machines : , Akerman, Herrenknecht , komatsu contruction and mining equipment
- Crushers , Power screen, Cement and coal mills : Bradken, ESCO corporation, Buhler, Thyssenkrupp, Sandvik and Loesche
4 Types of Mechanical Face Seals
Showing all 4 results
-

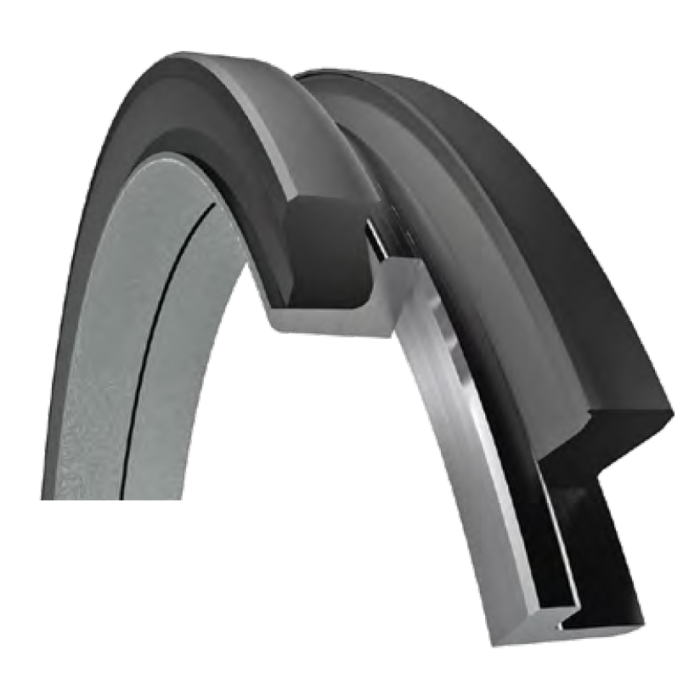

Square Bore Type Mechanical Face Seal Better Mud Packing Behavior
The mechanical face seal type 76.95 consists of two metallic angular seal rings with identical contours. The seal rings are assembled with trapezoid elastomer parts positioned against the housing bore. Type 76.95 provides stiffer spring characteristics than standard o-ring designs.
The HSL seal is an evolution and special form of the square bore seal. It uses a unique and patented design for the elastomeric part of the seal with an integral dirt exclusion lip and heavy-duty spin protection. These features improve protection significantly, leading to reduced leakage, extended service life and resisting compression from mud.
-

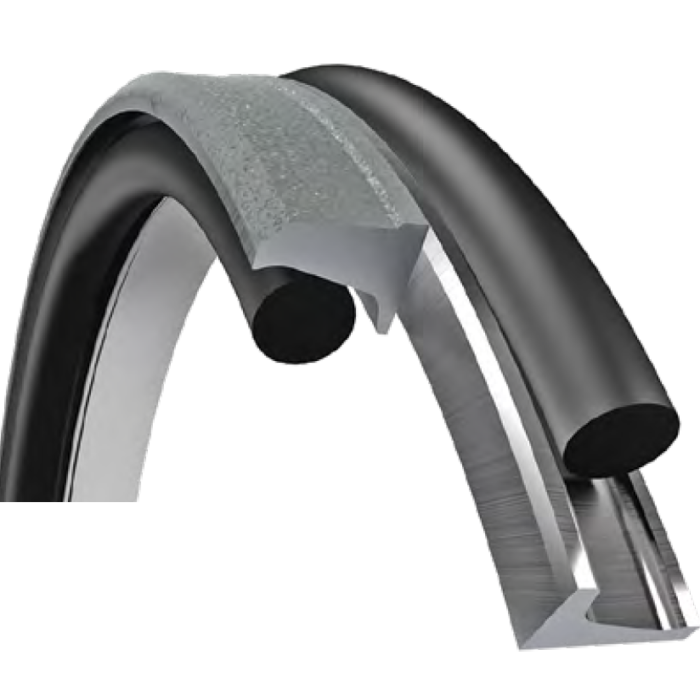

Asymmetric Type Mechanical Face Seal Less Installation Space
There are two different versions: the inverted seal ring design provides a considerable savings potential with regards to the cross section and manufacturing technology. The countering style shows advantages when there is limited installation space.
-
Square Bore Type Mechanical Face Seal Better Mud Packing Behavior
The mechanical face seal type 76.95 consists of two metallic angular seal rings with identical contours. The seal rings are assembled with trapezoid elastomer parts positioned against the housing bore. Type 76.95 provides stiffer spring characteristics than standard o-ring designs.
The HSL seal is an evolution and special form of the square bore seal. It uses a unique and patented design for the elastomeric part of the seal with an integral dirt exclusion lip and heavy-duty spin protection. These features improve protection significantly, leading to reduced leakage, extended service life and resisting compression from mud.
-

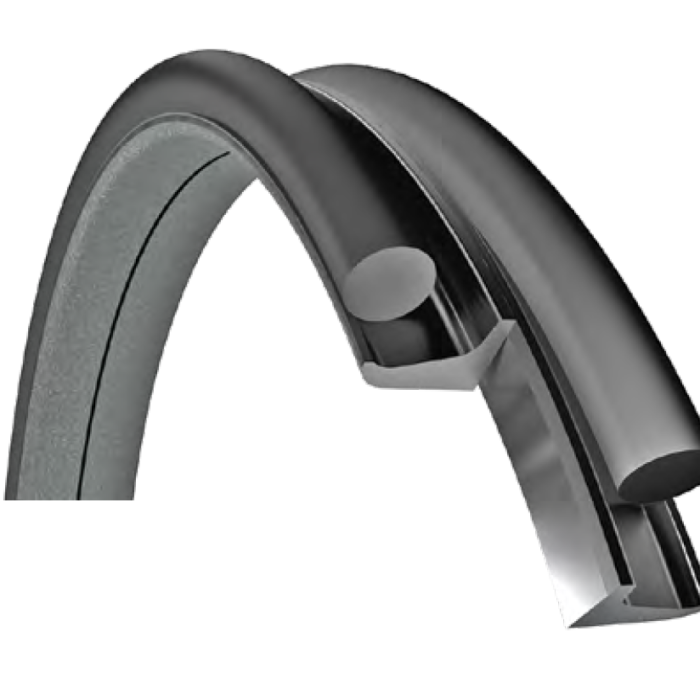

O-Ring Type Mechanical Face Seal Standard Product
The most common mechanical face seals design is the o-ring, with two symmetrically tapered seal rings and two o-rings. O-ring designs have two versions – the 76.90H with a ground profile; and the 76.97H with an as-cast profile. In general, both versions are completely interchangeable.
